SMA-Male to BNC-Female Coax Adapter for Yaesu, Icom & RT85
SMA-Male to BNC-Female Coax Adapter for Yaesu, Icom & RT85
Couldn't load pickup availability
This high-quality adapter connects your Yaesu, Icom, or Retevis RT85 handheld radio to a BNC-style antenna or coax cable. It's the standard adapter needed for connecting "Japanese-style" handhelds to most scanner antennas, SDRs, and ham radio test equipment.
💡 Please Note: Sold as a Single Adapter

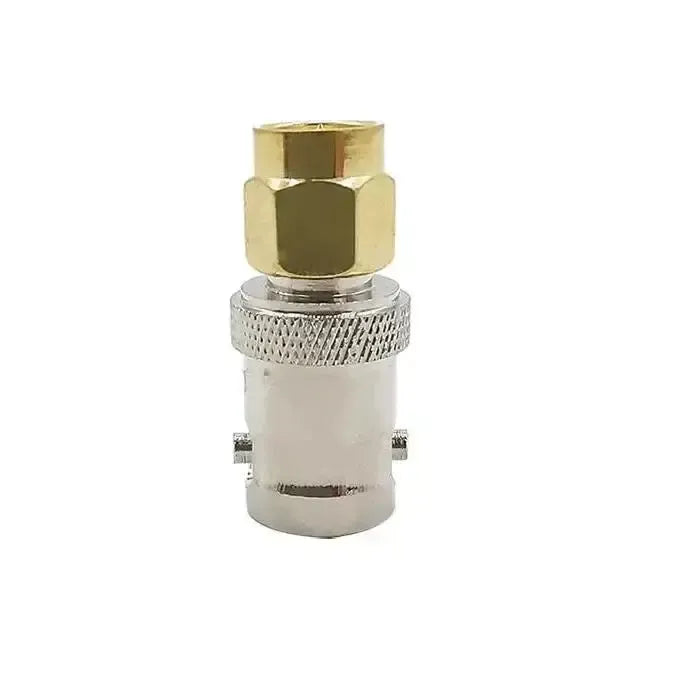

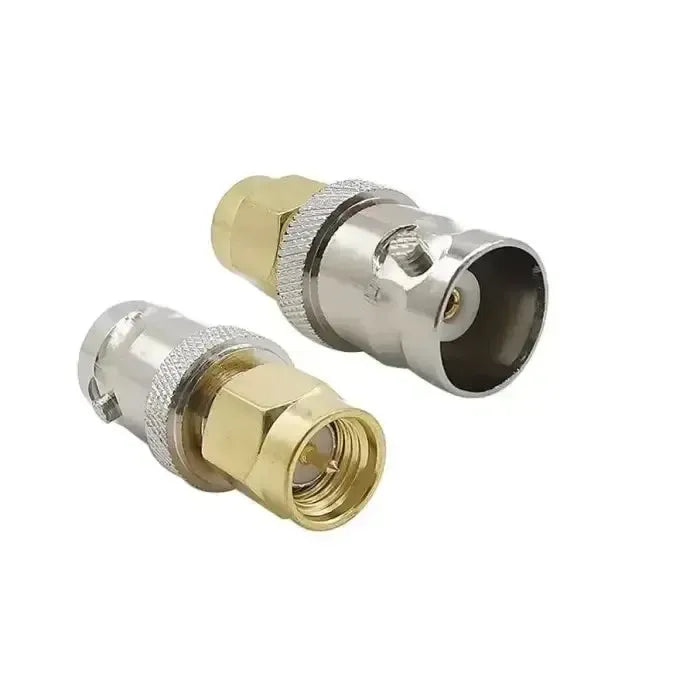

The main product image shows two adapters from different angles so you can see both connectors. This item is sold as a single (1) adapter.
-
🔌

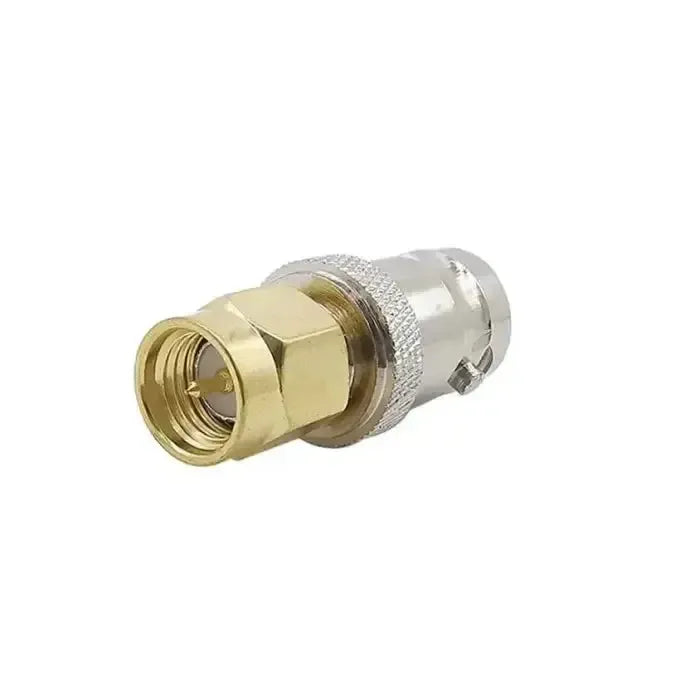

Connector 1: SMA-Male (With Pin): Features a center pin and threads on the *inside*. Designed to screw onto radios that have a center hole.
-
📡

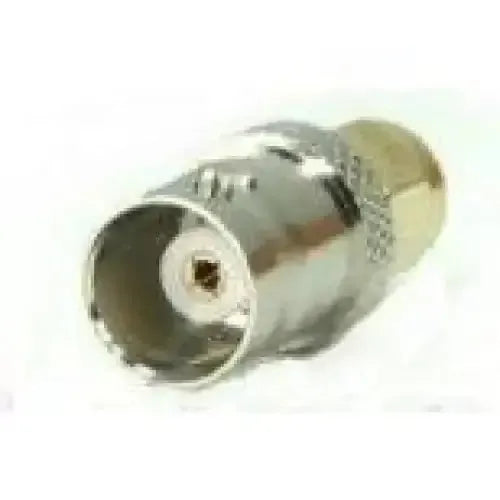

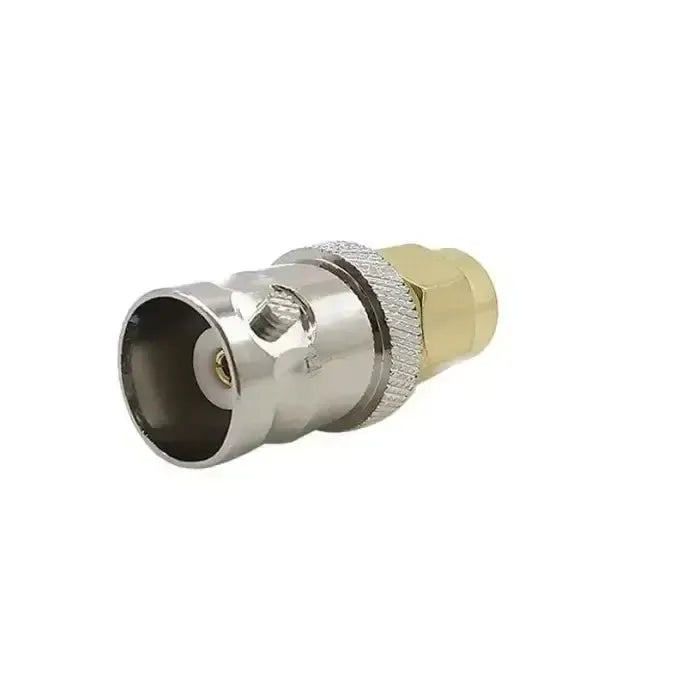

Connector 2: BNC-Female: The standard "twist-lock" connector. Accepts any BNC-Male plug.
-
📻
Ideal for Hams & Hobbyists: The perfect adapter for connecting your handheld to a scanner, SDR (Software Defined Radio), or antenna analyzer that uses a BNC port.
✅ Fits Radios with a CENTER HOLE (SMA-Female Port)
This adapter fits handheld radios that have an SMA-Female antenna port (a port with a center hole that protrudes from the body).
Compatible Models Include:
- Retevis: RT85, RA89
- Yaesu: FT-60R, FT-70DR, VX-6R, FT-5DR
- Icom: ID-51, ID-52
- Other: Most Wouxun and TYT handhelds
⚠️ Does NOT Fit Baofeng or Quansheng
This adapter does NOT fit most Baofeng (UV-5R, UV-82) or Quansheng (UV-K5) radios, as they use the *opposite* (SMA-Male) connector on the radio body (with a center pin).
Technical Specifications
| Specification | Detail |
|---|---|
| Connector 1 (Radio Side) | SMA-Male (Center Pin, Threads Inside) |
| Connector 2 (Antenna Side) | BNC-Female (Center hole, twist-lock) |
| Impedance | 50 Ohm |
| Material | Nickel-plated brass |
