BNC-Male to SMA-Male Antenna Adapter (for Scanners & SDRs)

BNC-Male to SMA-Male Antenna Adapter (for Scanners & SDRs)

$9.99 CAD
$9.99 CAD
Sale Sold out
Shipping calculated at checkout.

This high-quality adapter allows you to use the massive ecosystem of "Chinese-style" SMA-Female antennas on your handheld scanner, SDR, or older ham radio. It converts a standard BNC-Female port into an SMA-Male port.

💡 Please Note: Sold as a Single Adapter

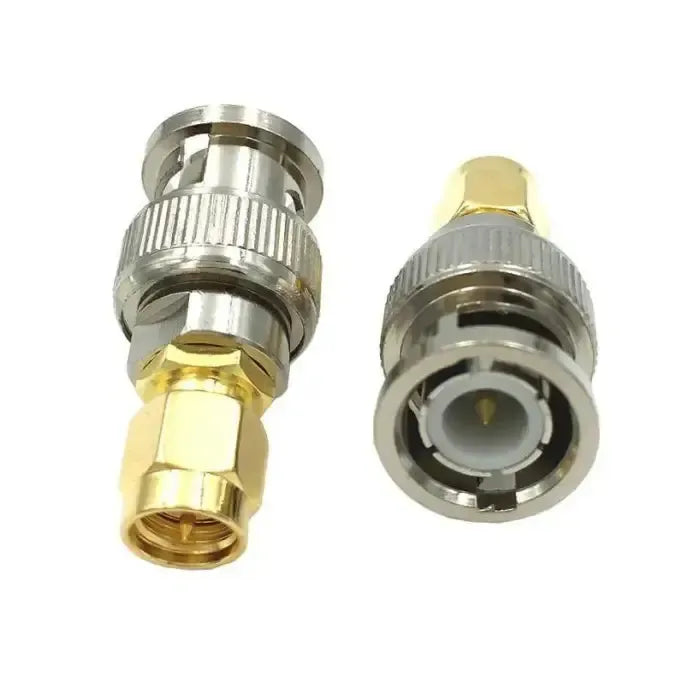

The main product image shows two adapters from different angles so you can see both connectors. This item is sold as a single (1) adapter.

  • 🔌
    Connector 1: BNC-Male (Device Side): Features a center pin with the "bayonet" twist-lock mechanism. Plugs into your scanner or radio.
  • 📡
    Connector 2: SMA-Male (Antenna Side): Features a center pin and threads on the *inside*. Connects to an SMA-Female antenna (like one for a UV-5R).
  • 🛰️
    Use Baofeng Antennas on Your Scanner: This is the perfect adapter for using popular, low-cost SMA-Female antennas on your BNC-equipped device.

✅ Compatibility Check

This adapter allows a device with a BNC-Female port to use an antenna with an SMA-Female plug.

  • DEVICES This Fits: Most Uniden, Whistler, and GRE handheld scanners, older Icom HTs (e.g., IC-V86), and test equipment.
  • ANTENNAS This Fits: Baofeng, Quansheng, and Retevis RT5R-style antennas (any SMA antenna with a center hole).

⚠️ Check Your Connectors

This adapter does NOT fit "Japanese-style" antennas (like those for a Yaesu FT-60R) as those antennas have a center pin.

Technical Specifications

Specification Detail
Connector 1 (Device Side) BNC-Male (Center Pin, Twist-Lock)
Connector 2 (Antenna Side) SMA-Male (Center Pin, Threads Inside)
Impedance 50 Ohm
Material Nickel-plated brass / Gold-plated contact
