Quansheng UV-K5(8) Amateur Radio NOAA Emergency Weather Receiver; IC Certified.
Quansheng UV-K5(8) Amateur Radio NOAA Emergency Weather Receiver; IC Certified.
Regular price
$69.99 CAD
Regular price
Sale price
$69.99 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
NOTICE: This radio transmits on Amateur Radio bands only. A valid Amateur Radio license is required. Not for commercial use. Cannot be programmed to FRS/GMRS/Marine or other commercial frequencies.
Quansheng UV-K5(8) Amateur Radio
Professional dual-band handheld with NOAA Emergency Weather Receiver. Clear audio, long-range performance, and dependable build—ideal for licensed ham operators and emergency preparedness.
Frequency Range
- 144–148 / 430–450 MHz (Tx / Rx)

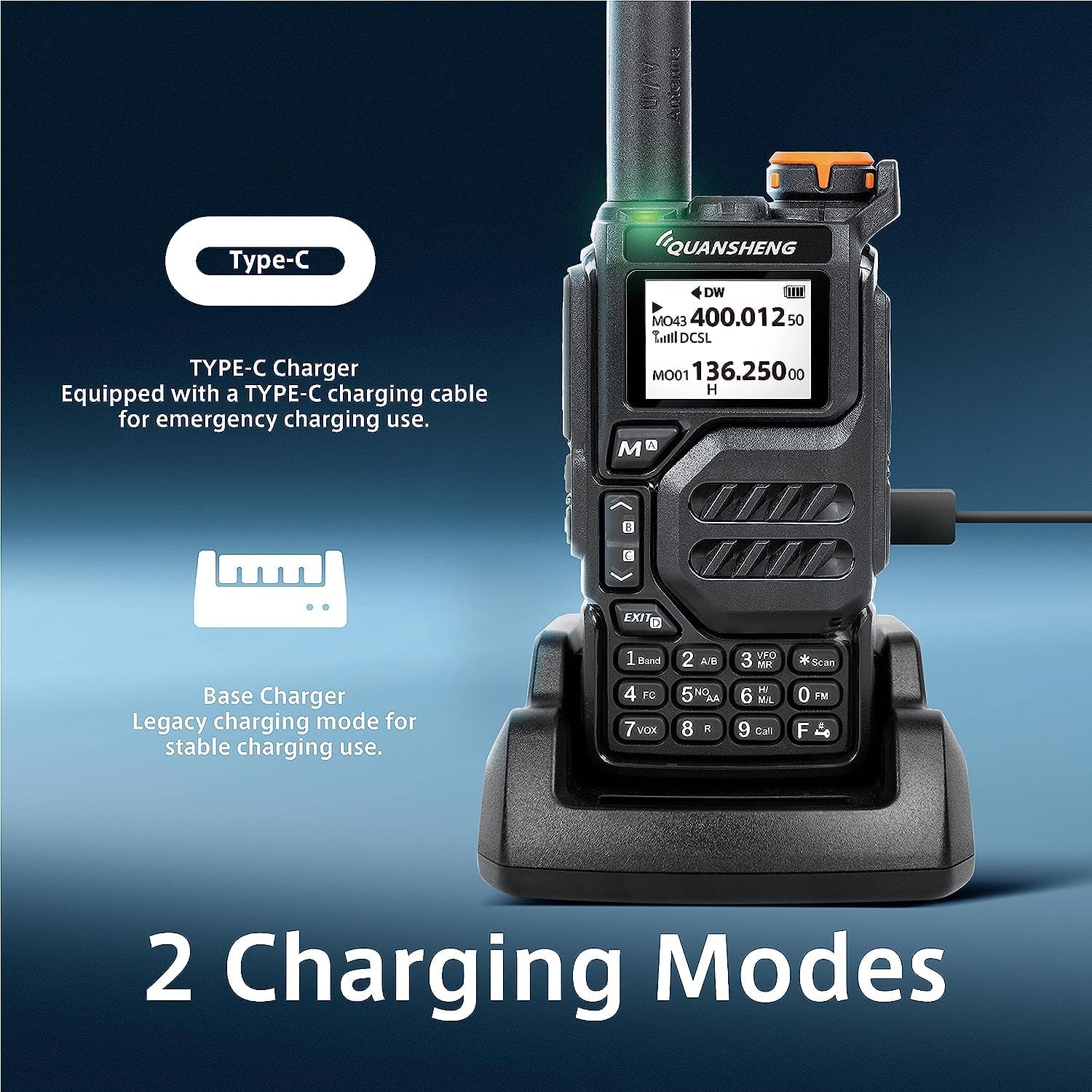

NOAA Weather Receiver CTCSS/DCS Privacy Codes* DTMF 10-Group Scrambler Emergency Alert Type-C / Base Charging Multi-Scan One-Key Call Channel Flashlight 200 Channels H/M/L Power Wide/Narrow Band
*Privacy codes help reduce channel chatter; they are not encryption.
Fast copy one channel, frequency-counter mode for certain devices, wireless radio replication. IC ID: 30518-UVK5.
| GENERAL SPECIFICATIONS | |
| Number of Channels | 200 |
| Number of FM Radios | 16 |
| Frequency Stability | ±1 ppm |
| Size | 115 × 60 × 37.5 mm |
| Weight | 234 g |
| Operating Temperature | -20 ℃ ~ +60 ℃ |
| Antenna Impedance | 50 Ω |
| Modulation Mode | FM: 11K0F3E (12.5 kHz), 16K0F3E (25 kHz) |
| NOAA Channels | 10 |
| Battery Capacity | 1600 mAh |
| RECEIVE (RX) | |
| Reference Sensitivity | FM (12 dB SINAD) — F1 (50–76) −121 dBm; F2 (108–135.9975) −121 dBm; F3 (136–173.9975) −123 dBm; F4 (174–349.9975) −123 dBm; F5 (350–399.9975) −123 dBm; F6 (400–469.9975) −123 dBm; F6 (470–599.9975) −121 dBm WFM (20 dB SINAD) — 76–108: −110 dBm AM (10 dB S/N) — 108–135.9975: −113 dBm |
| Audio Power | ≥ 0.5 W |
| Audio Distortion | ≤ 10% |
| TRANSMIT (TX) | |
| Frequency Band | VHF: 144–148 MHz UHF: 430–440 MHz |
| Transmitting Power | ≤ 5 W |
| Emission Current | ≤ 1.5 A |
| Max Frequency Deviation | ≤ 5 kHz (25 kHz), ≤ 2.5 kHz (12.5 kHz) |
| Modulation Distortion | ≤ 5% |
| Spurious Emission | ≤ 7.5 µW |
| Adjacent Channel Power | 70 dB (25 kHz), 60 dB (12.5 kHz) |
| Residual Modulation | 40 dB |
